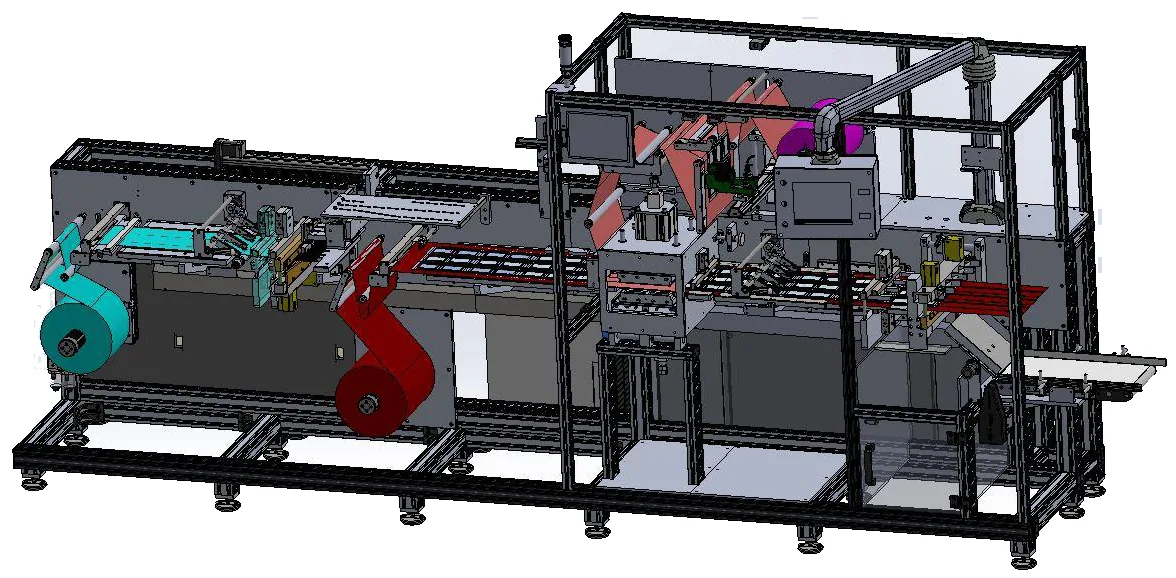

A brand-new Mactec horizontal pouching machine is built and available for application review. The MTHP300XL makes four-side-seal pouches around flat or placed products, such as patches, medical devices and diagnostic components. It has never run in production, and it is on our floor in Sayreville, New Jersey.
Skip the build time
A new MTHP150 horizontal pouch machine typically takes about 30 to 40 weeks to reach factory acceptance testing, based on recent proposals. This MTHP300XL is already built, and you can visit our plant to see it. Tooling, product feeding and acceptance testing for your product are agreed in Mactec’s proposal.
Products we review for it
- Transdermal, hydrogel and other patches
- Medical devices and diagnostic components
- Kits with more than one piece, such as a vial and a swab
- Wipes and pads, after we review how they are folded, wetted and loaded
Each is a question of fit, not a promise: we review your product, how it is loaded and the pouch you need. The machine suits contract packagers and manufacturers that want a horizontal pouching line without waiting for a new build: flat or placed products, several setups with quick changeovers, and small to medium runs on a machine built for continuous production.
What comes with it
- Pneumatic sealing station with water chiller and format seal tooling
- Grab-and-pull stepper index, slitter station and guillotine final cut
- Inkjet printing with traverse and print registration
- Four splice and low-material sensors, and a discharge conveyor
Options: a vision system that checks product placement and presence, a 4-across vial feeder, a 4-across swab feeder, and spare seal tooling. We review product loading and the feeding your product needs as part of the application review.
Specifications
| Machine size (L x W x H) | 15 ft 8 in x 3 ft 3 in x 6 ft 3 in (4.8 x 1.0 x 1.9 m) |
|---|---|
| Weight | About 1,050 lb (476 kg) |
| Web width | 12 in (305 mm) |
| Sealing area | About 11.25 in x 10.25 in (280 x 260 mm) |
| Film rolls | Lower up to 17.7 in (450 mm); upper up to 12.0 in (305 mm); 3 in core |
| Product feed area | Up to 36 in (915 mm) |
| Speed | 5 to 25 cycles per minute |
| Electrical | 110 VAC, 15 A (UL and CSA) |
| Air | 12 to 16 CFM at 20 cycles per minute |
| Controls | Automation Direct 205 PLC with a 6 in C-More color touchscreen |
| Construction | 304 stainless steel enclosures; polycarbonate doors with interlocks; leveling pads |
| Built | Sayreville, New Jersey |
Specifications come from Mactec’s MTHP300XL proposal and depend on the application. Your final configuration, tooling, utilities and output are confirmed in Mactec’s proposal.
Is it right for your product?
Tell us three things and we check the fit before you commit:
- Your product, and whether one piece or a kit goes in each pouch.
- The pouch size and the film you plan to use, ideally with a pouch drawing.
- How many pouches you need per shift.
Where practical, we run a sample on a Mactec machine before you commit.
Ask about the MTHP300XL
There is one machine. Ask for the price, the sales sheet or a visit using the form below, or call 732.416.8525.
Talk to an engineer
Request an equipment quote
Compare Mactec’s other pouch machines on the pouch packaging machines page.
