Blister Packaging Machines
Compact blister packaging machines, built in New Jersey since 2004.
For pharmaceutical, nutraceutical, medical-device and lab packaging.
Customers include Bristol Myers Squibb, Teva, Bayer, Catalent, Eurofins, Alcami and Cambrex.
- Typical quote
- About $15,000 to $400,000 (MT Tabletop to MT150)
- Lead time
- About 12 to 30 weeks to factory acceptance testing, per recent proposals
Our engineers review your samples and drawings and run samples on a Mactec machine where practical.
Equipment selection
Blister packaging machines
Choose a blister sealer when the blister is already formed and loaded, or a horizontal (flat-bed) form-fill-seal blister machine, the MT100 or MT150, that forms, fills, seals, perforates and cuts in one line. Then compare the specifications.
Looking for something specific? See the table top blister sealer, unit dose packaging machines for pharmacies, pharmaceutical packaging machines or medical device packaging machines.
Compare specificationsExplore machines
Choose a model to review its operation, specifications and options.
Blister packaging and sealing machine MT150
Learn more about MT150MT150 Spec sheet (PDF) — opens in a new tab
Tabletop blister sealing machine MT Tabletop
Learn more about MT Tabletop Blister SealerMT Tabletop Blister Sealer Spec sheet (PDF) — opens in a new tabMore about each machine
Choose your blister pack machine
Start with the work your machine needs to do. The MT Tabletop Blister Sealer handles the sealing step. MT100 and MT150 combine forming, filling, sealing, perforating, and cutting. Compare the models below, then talk with Mactec about your product, package, and production goals.
MT100 Small Blister Pack Machine (Form-Fill-Seal)
Mactec’s small blister pack machine for laboratory, R&D, and small-production runs. MT100 combines blister forming, filling, sealing, perforating, and cutting in a compact form-fill-seal footprint.
- Thermoforming and cold-forming applications
- Manual or automatic product filling, selected for the application
- Options for liquids, powders, tablets, capsules, gummies, and medical devices
- Application-specific coding and change tooling
View the MT100 small blister pack machine
The MT100X videos below show an earlier model, not the current MT100.
MT100 specifications
- Machine Dimensions: 1752mm x 711mm x 2121mm (LWH)
- Machine Weight: ~275Kg
- Forming Area: ~80 × 95 mm
- Max Forming Depth: 16mm
- Max Web Width: 105mm
- Machine Speed: 5-35cpm depending on product characteristics
- Electrical Requirements: 110VAC at 15amps
- Air Consumption: 10-12 CFM based on 20CPM

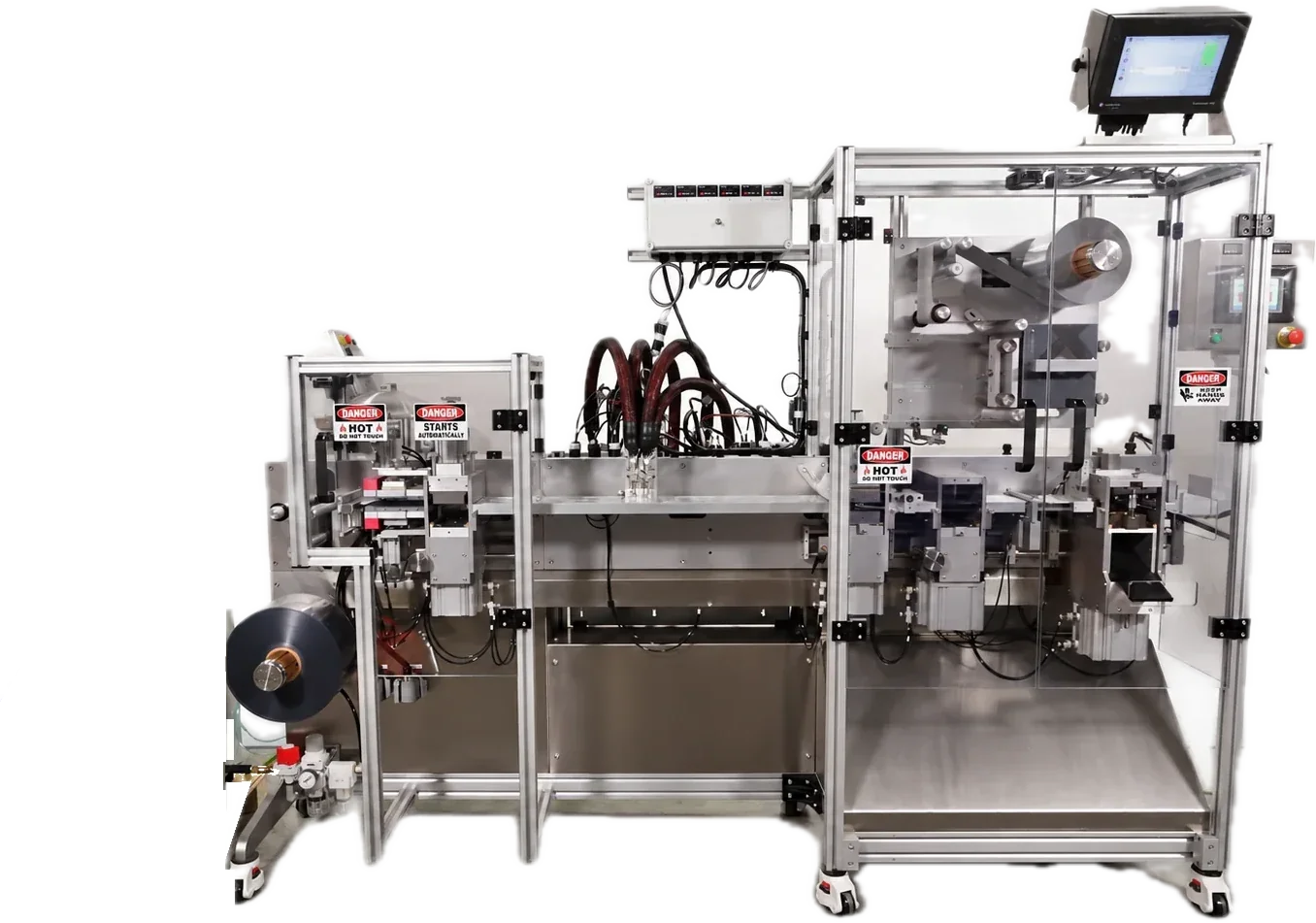

MT150 Blister Packaging Machine
Form-fill-seal equipment for small-to-medium production. MT150 combines forming, filling, sealing, perforating, and cutting. Compare its format range and footprint with MT100 when selecting a blister packaging line.
- Thermoforming and cold-forming applications
- Manual or automatic filling systems
- Product handling and coding options matched to your application
- Change tooling for the package formats specified in your proposal
MT150 specifications
- Machine Dimensions: 4153mm Length x 1092.2mm Width x 2248mm Height
- Machine Weight: 636kg
- Forming Area: 150 x 150mm
- Max Form Depth: 19mm
- Max Web Width: 160mm
- Machine Speed: 5-35CPM depending on product characteristics
- Electrical: 220VAC, 3ph@25 amps
- Air Consumption: 12-16CFM based on 20 cycles/min

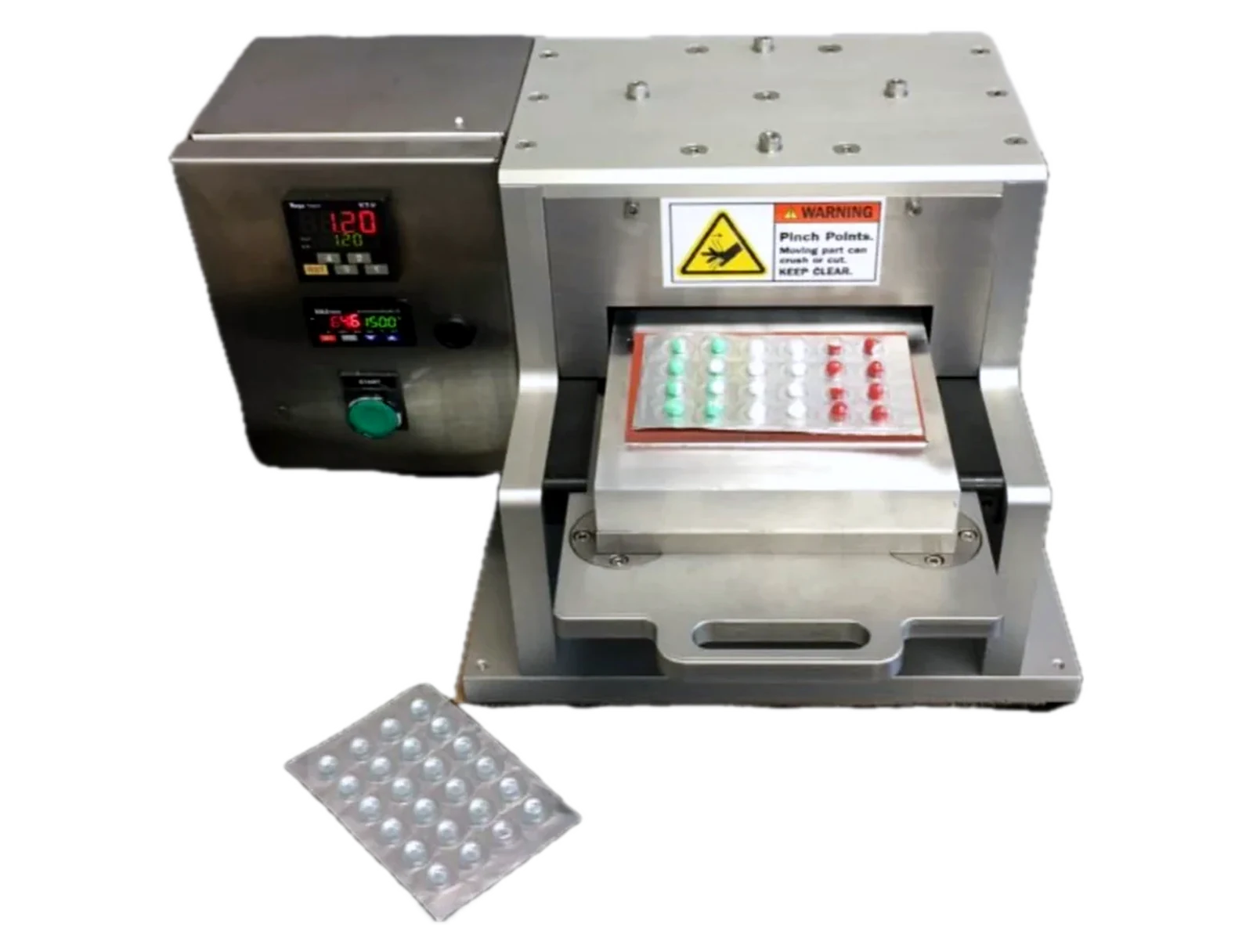

MT Tabletop Blister Sealing Machine
Seal prepared blisters on a tabletop blister sealing machine. The MT Tabletop Blister Sealer handles the sealing step only; it does not form or fill the blister. Choose it when the blister and product are prepared before sealing. It is also searched for as a table top blister machine or a blister pack sealing machine.
- Digital heat controls
- Digital sealing timer
- Removable seal dies and tool-less change parts
MT Tabletop Blister Sealer specifications
- Machine Dimensions: 304mm x 355mm x 247mm (LWH)
- Timer: Koyo Digital Timer
- Machine Weight: ~34 Kg
- Machine Speed: 1-10 cpm
- Electrical Requirements: 650 Watts, 110VAC, 50/60Hz
- Air Consumption: 2-3 CFM
- Main Air Pressure: 30PSI-90PSI
What is a blister packaging machine?

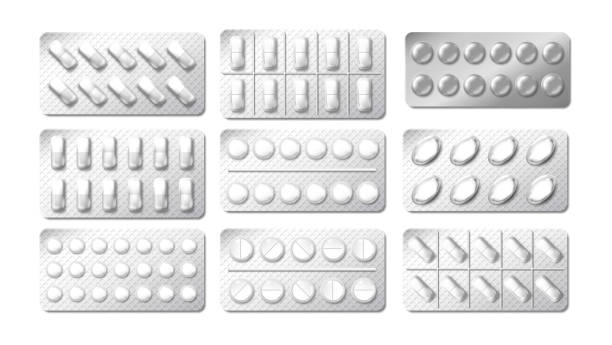

A blister packaging machine seals each tablet, capsule, dose or small device in its own pocket, called a cavity, and closes it with lidding to make a blister card. A form-fill-seal blister machine does the whole job on one machine. It forms the cavities from a roll of film (thermoforming) or foil (cold forming), fills them by hand or with an automatic feeder, seals the lidding, then perforates and cuts the cards. A blister sealer does only the last step, sealing blisters that are already formed and loaded. Pharmaceutical, nutraceutical, medical-device and lab teams use them for unit-dose packs, clinical and stability batches, and package prototypes. At Mactec, the MT100 covers lab, R&D and small runs, the MT150 covers small-to-medium production, and the MT Tabletop sealer handles manual, low-volume work.
How much does a blister packaging machine cost?
Most Mactec blister machine quotes fall in these ranges: a tabletop blister sealer about $15,000 to $45,000, the MT100 about $240,000 to $305,000, and the MT150 about $280,000 to $400,000. Your price depends on the product, feeding, tooling, printing, inspection and validation package, and our budgetary proposals separate the base machine from each option. Read what drives packaging machine cost.
Request an equipment quote
Share what you know so far. You do not need a finished specification. We match the machine and quote it.
We review your product, package, drawings and available samples. A budgetary proposal lists the base machine and options separately. Once formats, operations and acceptance criteria are agreed, we prepare a firm quotation. See how a Mactec project works.
Or call 732.416.8525For 503B pharmacies, clinical trials and stability runs
A small batch does not need a production line. Start with the MT Tabletop Blister Sealer to seal prepared blisters for stability samples and package prototypes: a 304 × 355 mm bench footprint on 650 watts, 110 VAC, 50/60 Hz. Move to the MT100 when the machine should form, fill, seal, perforate and cut: a 1752 × 711 mm floor footprint on 110 VAC at 15 amps. Step up to the MT150 for a 150 mm × 150 mm forming area and small-to-medium batches: 4153 × 1092.2 mm on 220 VAC, 3 phase at 25 amps.
Each step keeps the same support: final layout, electrical and pneumatic drawings, an instruction manual with spare-parts list, factory acceptance testing you can witness in Sayreville, and IQ/OQ protocol support when your validation plan calls for it. Quote ranges for all three are above; the unit dose packaging machines for pharmacies and small-batch, clinical and R&D equipment pages cover those applications in more detail.
Built and supported in New Jersey
- Founded in 2004. Every Mactec machine is designed, engineered and built at our Sayreville, New Jersey headquarters.
- Our engineers review your samples and drawings and run samples on a Mactec machine where practical.
- Factory acceptance testing you can witness, on-site installation and validation, IQ/OQ protocol support and operator training.
- Spare parts are stocked at our New Jersey headquarters.
- Built and shipped from New Jersey: US customers pay no import tariff and need no customs broker.
- Standard documentation with every machine: final layout, electrical and pneumatic drawings and an instruction manual with spare-parts list.
See the machines in operation
Blister equipment in practice
Read about a two-machine MT150 factory-acceptance project. This historical project involved earlier MT150 equipment, not the current MT150 configuration. A second story covers Mactec thermoforming blister equipment at 503B pharmacies.
Customers include Bristol Myers Squibb, Teva, Bayer, Catalent, Eurofins, Alcami and Cambrex.
How the machines compare
Pharmaceutical blister packaging machines, made in the USA: a tabletop blister sealing machine, or form-fill-seal blister pack machines for unit-dose, medical-device and R&D runs.
Compare the published specifications
Blister packaging machines made in the USA
As a blister machine manufacturer, Mactec builds three blister packaging machines at its Sayreville, New Jersey headquarters: the MT100 small blister pack machine (form-fill-seal) for laboratory, clinical and small-run work; the MT150 blister packaging machine for small-to-medium production, both with thermoforming or cold forming; and the MT Tabletop blister sealing machine for blisters that are already formed and loaded. They package unit-dose pharmaceutical and medical-device products, with factory acceptance testing, IQ/OQ protocol support and spare parts stocked in New Jersey.
Compare blister packing machines by process
Choose a blister sealing machine when the blister is already formed and loaded. For a complete blister packaging machine that forms, fills, seals, perforates and cuts, compare the two form-fill-seal models.
| Machine | Process | What to compare |
|---|---|---|
| MT Tabletop Blister Sealer | Seal a prepared blister | Blister and lidding materials, sealing area and manual loading. |
| MT100 small blister pack machine | Form, fill, seal, perforate and cut | Laboratory, clinical and small-run work; review package drawing and product handling. |
| MT150 | Form, fill, seal, perforate and cut | Small-to-medium batches; compare forming area, depth, loading and selected options. |
Open a model page for public specifications and details. Output depends on the product, package and selected configuration.
Types of blister packaging machines
A blister sealing machine seals a blister that is already formed and loaded; the MT Tabletop Blister Sealer handles that step for low-volume, laboratory and manual work. A form-fill-seal blister machine forms the cavities from a roll of film, fills them, seals the lidding, then perforates and cuts the cards; the MT100 (compact, for laboratory, R&D, clinical and small runs) and the MT150 (small-to-medium production) do this with thermoforming or cold forming: as thermoforming machines, they heat the forming film and shape the cavities on the machine itself. Read blister sealer or form-fill-seal: which do you need?
| Specification | MT Tabletop | MT100 | MT150 |
|---|---|---|---|
| Machine dimensions (L × W × H) | 304 mm × 355 mm × 247 mm | 1752 mm × 711 mm × 2121 mm | 4153 mm × 1092.2 mm × 2248 mm |
| Machine weight | Approximately 34 kg | Approximately 275 kg | 636 kg |
| Forming area | Confirm with Mactec | Approximately 80 mm × 95 mm | 150 mm × 150 mm |
| Maximum forming depth | Confirm with Mactec | 16 mm | 19 mm |
| Maximum web width | Confirm with Mactec | 105 mm | 160 mm |
| Machine speed | 1–10 cycles per minute | 5–35 cycles per minute, depending on product characteristics | 5–35 cycles per minute, depending on product characteristics |
| Electrical requirements | 650 watts, 110 VAC, 50/60 Hz | 110 VAC at 15 amps | 220 VAC, 3 phase at 25 amps |
| Air consumption | 2–3 CFM | 10–12 CFM based on 20 cycles per minute | 12–16 CFM based on 20 cycles per minute |
Specifications are application-dependent and must be confirmed in Mactec’s proposal.
Semi-automatic or automatic blister packing machine?
Start with how much of the work the machine should do. The MT Tabletop Blister Sealer is a blister sealing machine with manual loading: an operator loads blisters that are already formed and filled, and the machine seals them. The MT100 and MT150 are blister card packaging machines that form, fill, seal, perforate and cut on one machine. With an operator placing the product in each cavity, they run as semi-automatic blister packaging equipment; with an automatic feeder, they run as a fully automatic blister packing machine. Manual or automatic filling is selected for your product.
Each package format needs its own tooling. The MT100 and MT150 take change tooling for the formats in your proposal, and the tabletop sealer uses removable seal dies and tool-less change parts. Tooling changes are designed to be quick, often taking minutes, depending on the machine, the tooling and the product.
As blister packaging solutions for the pharmaceutical industry, nutraceuticals, medical devices and labs, the MT100 suits laboratory, clinical and small runs and the MT150 small-to-medium production; conveyors and integration into your production line are quoted as options. Mactec designs and builds every machine in Sayreville, New Jersey, and offers factory acceptance testing you can witness, on-site installation and validation, IQ/OQ protocol support, operator training and spare parts stocked at our headquarters.
What determines the cost of a blister packaging machine?
Two machines with the same model name can be very different purchases. The price moves with how the product gets into the blister (an operator placing each item, or automatic feeders), the number of cavities made per cycle, the tooling set for each package format, thermoforming or cold forming, printing and coding, inspection and rejection, conveyors and integration, and the validation documentation you need. A tabletop sealer handles the sealing step only; a form-fill-seal machine also forms and fills the package, so the two are not priced for the same work. Our budgetary proposals separate the base machine from each option. Read what drives packaging machine cost.
Blister Sealer or Form-Fill-Seal Machine: Which Do You Need?
How these machines work

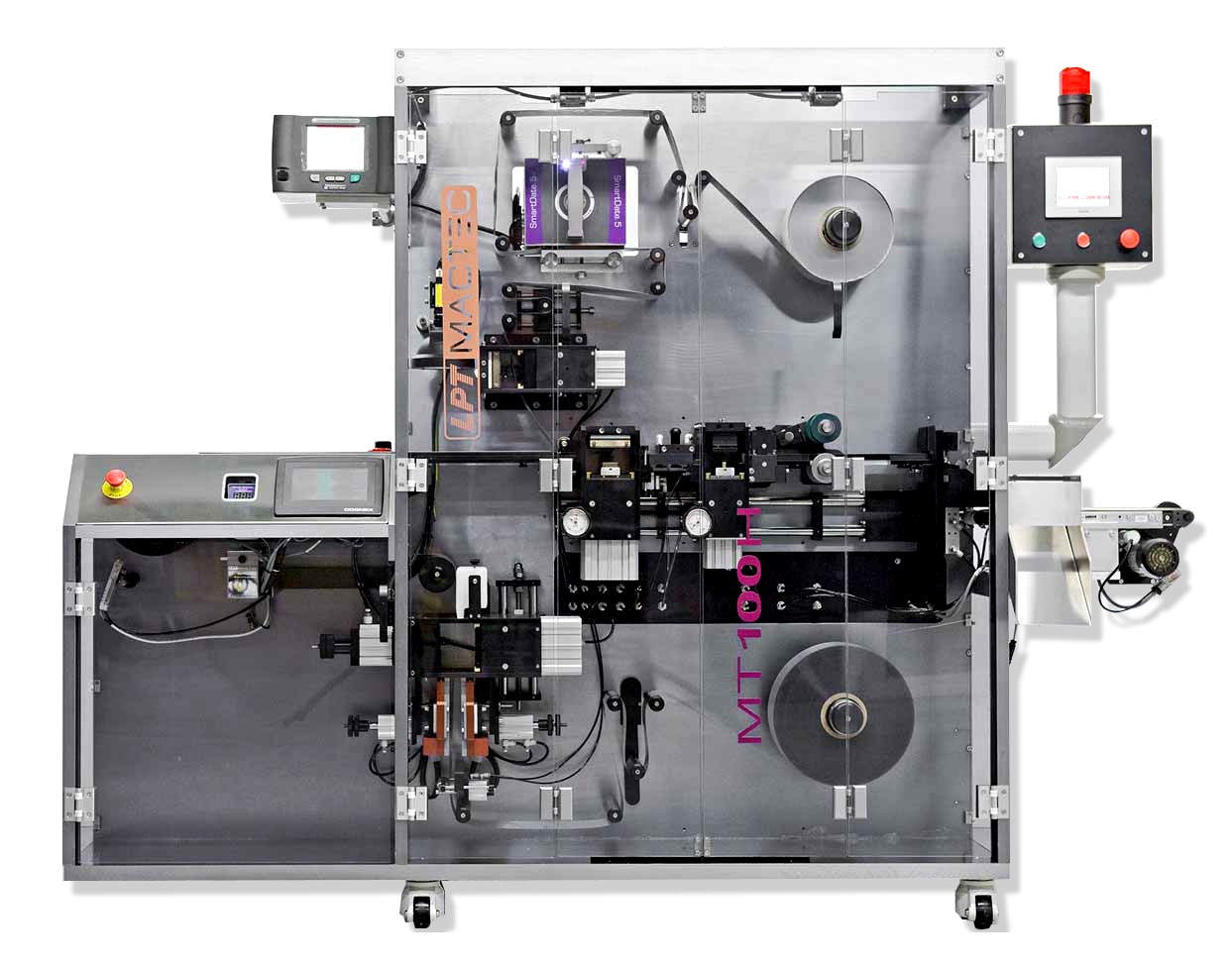

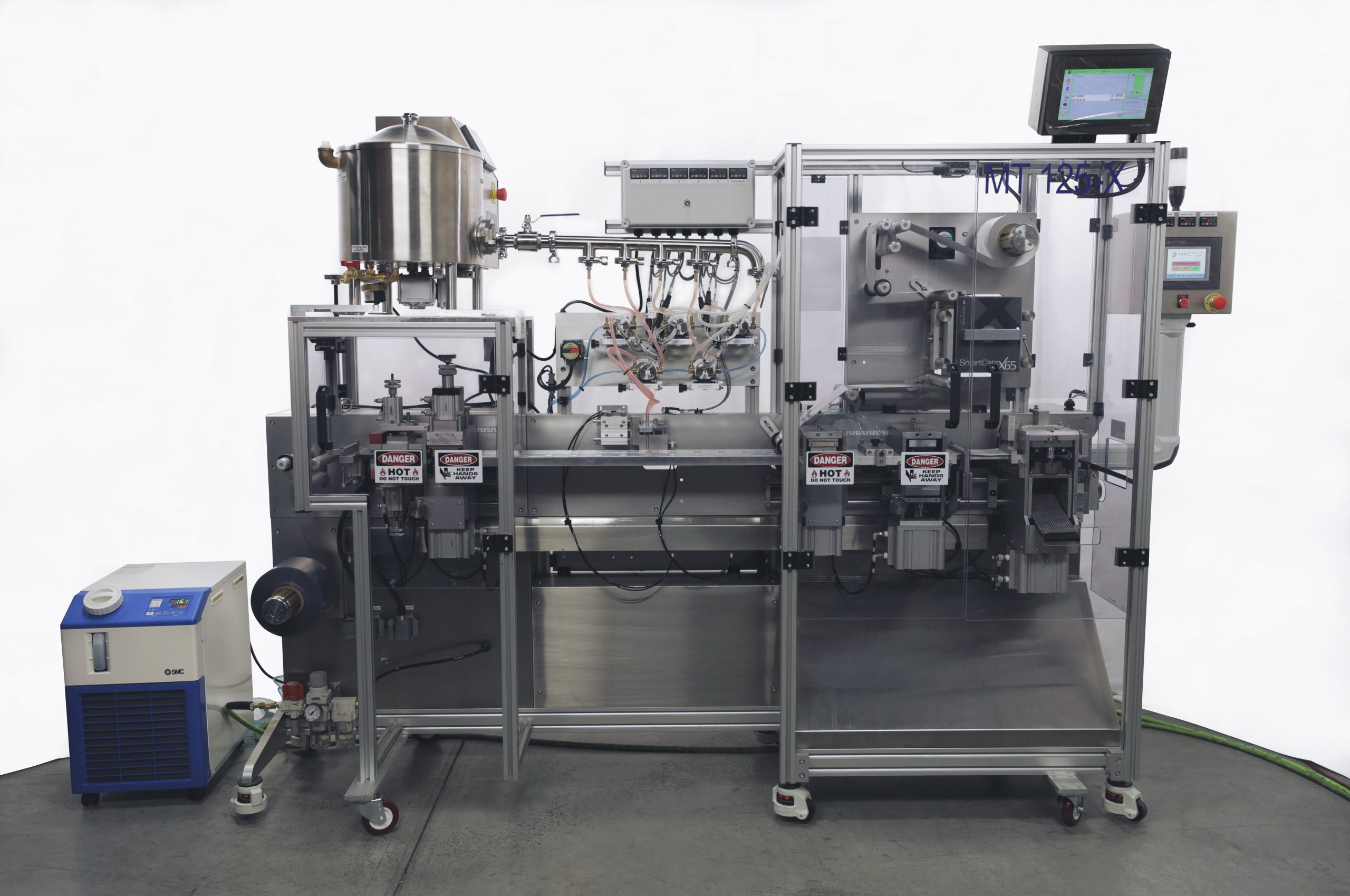

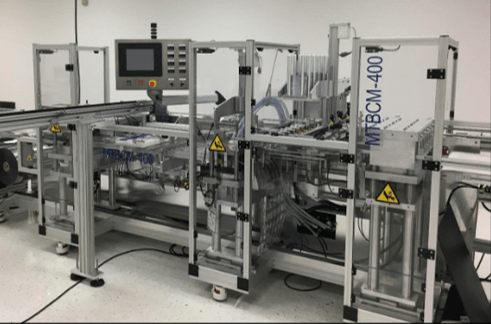

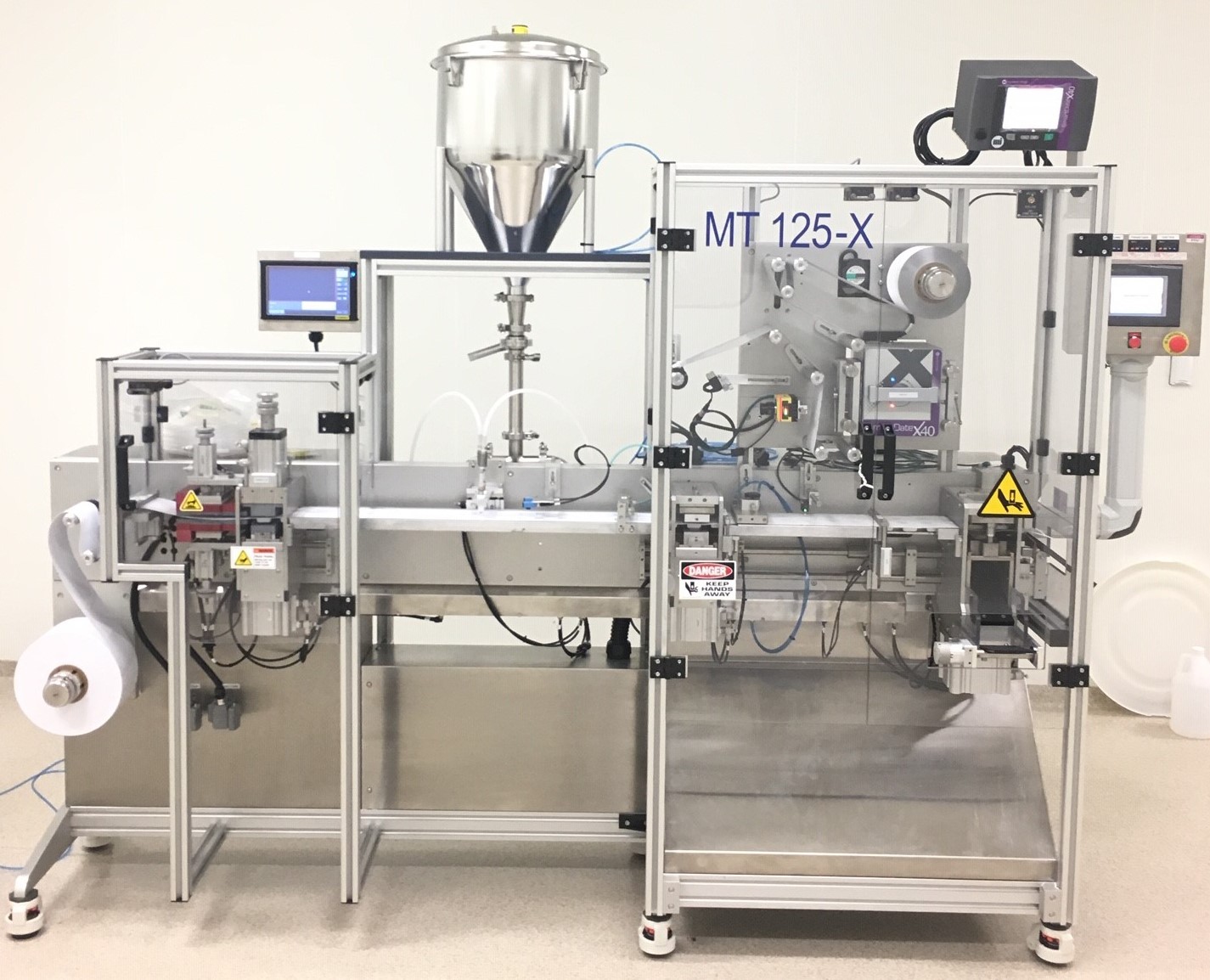

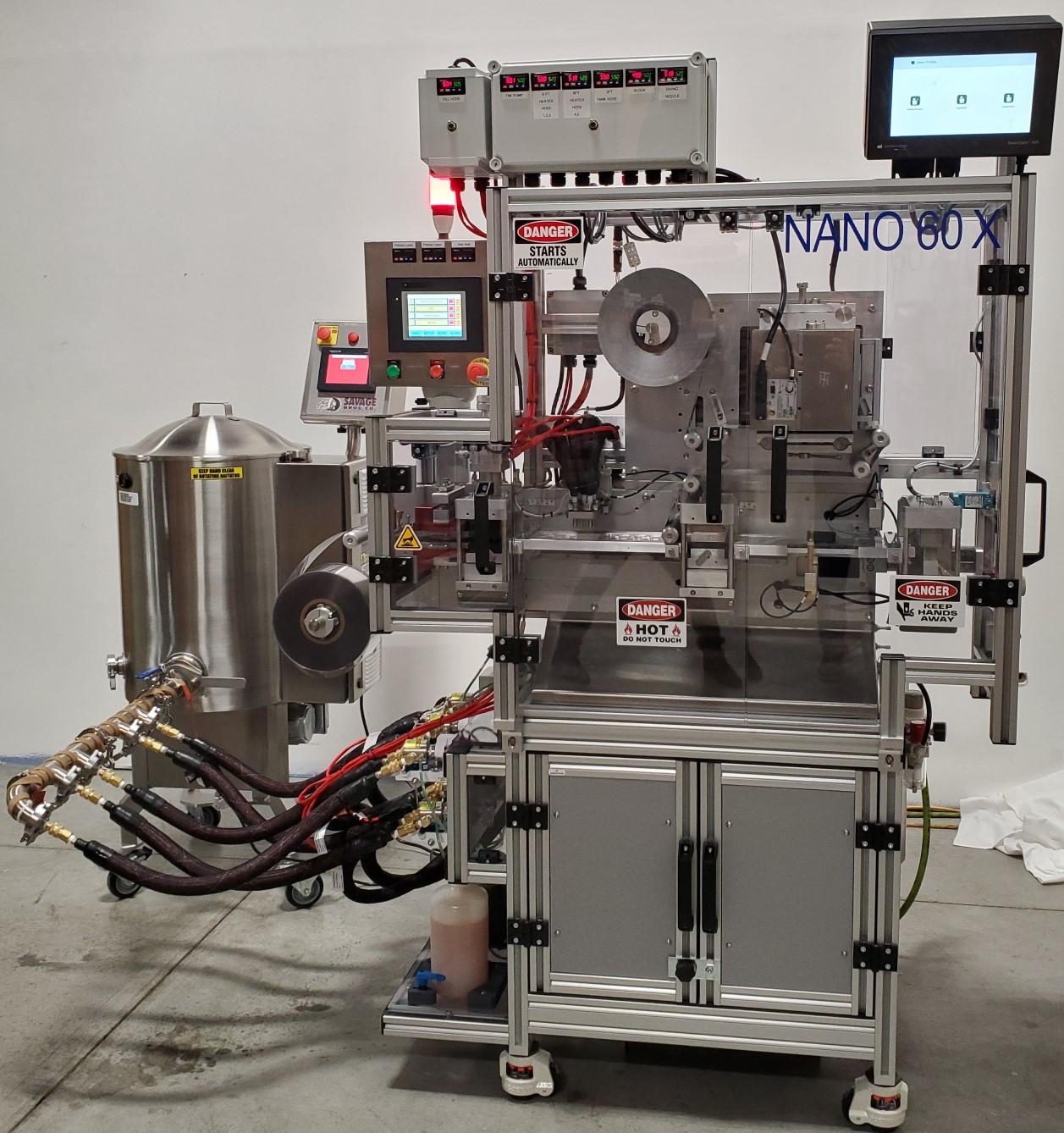

Mactec machine photographs
This gallery includes earlier Mactec models and different machine configurations. See the current model pages above for equipment details.
A closer look at the equipment
Formats and options across the range
- Thermoforming and cold forming
- Forming, filling, sealing, perforating, and cutting
- Manual or automatic filling options
- Lot, expiration-date, and barcode printing options
- Quick product changeovers
- Printing options for variable package information
- Digital heat controller
- Digital timer
- Tool-less change parts
- Multiple removable seal-die options
Every option above is listed on the model pages. Which ones your configuration includes is confirmed in Mactec's proposal.
Need a different package?
Planning your project
Let’s discuss your application
You do not need a finished equipment specification to start. These details will help us recommend a suitable machine.
Your product and package
Tell us what you are packaging and share a sample or drawing of the blister and lidding material.
The steps you need
Do you need to seal a prepared blister, or form, fill, and seal the package? Let us know how you plan to load the product.
Your production goals
Share your batch sizes, target output, and planned product changes. We can then discuss tooling, available space, and installation support.
Related guides
- Blister packaging materials: PVC, PVDC, Aclar and cold-form foil in plain English.
- Replacing an aging blister machine: What to document about your current machine and how to plan the switchover.
- Small-batch blister runs: Stability batches, clinical runs and package prototypes.
- Unit-dose repackaging for hospitals and 503B pharmacies: Blister cards or strip pouches, labeling, formats and loading.
Ready for a quote?
Send us your product and film. We match the machine and quote it. You do not need a finished specification.
