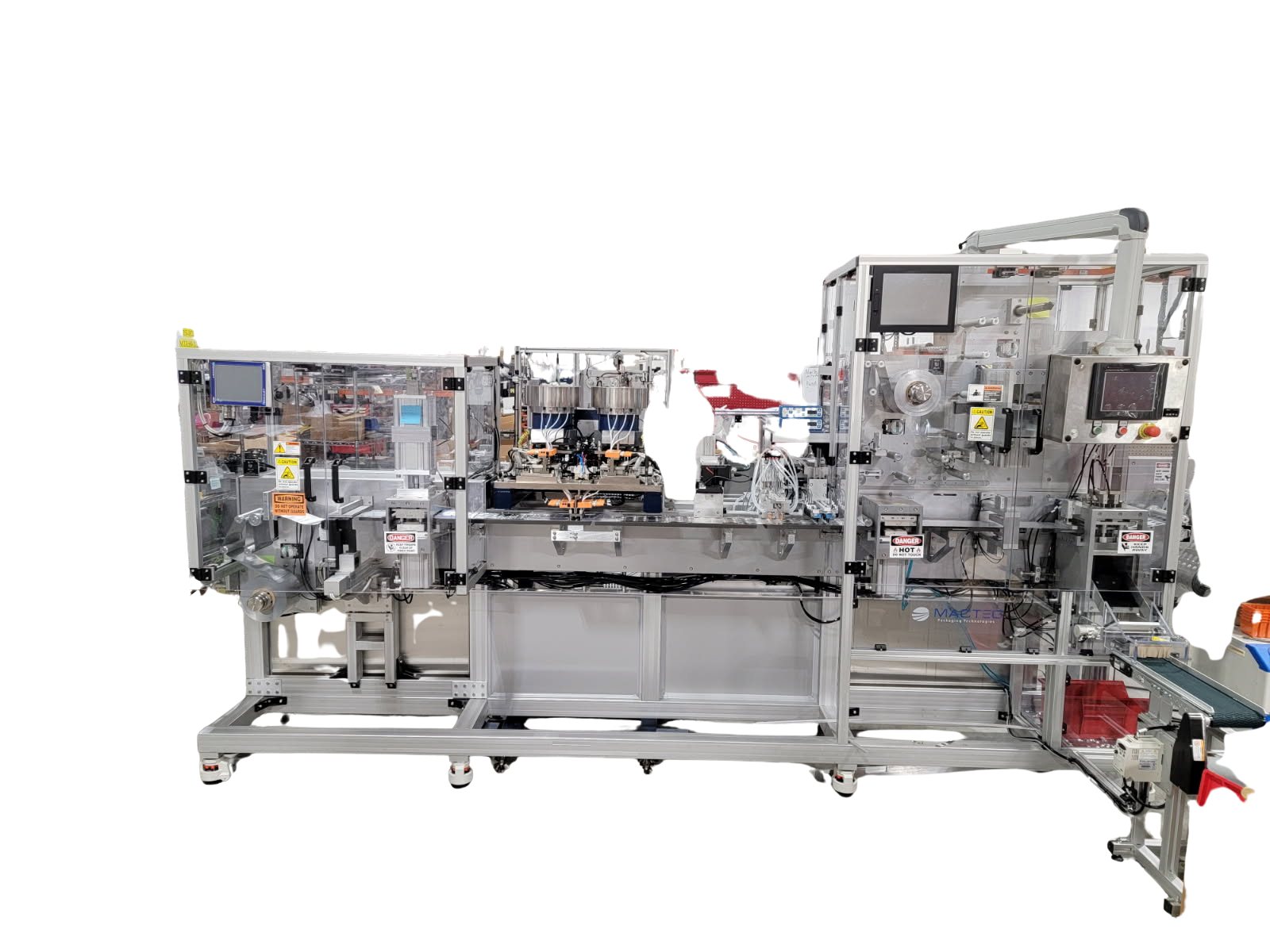

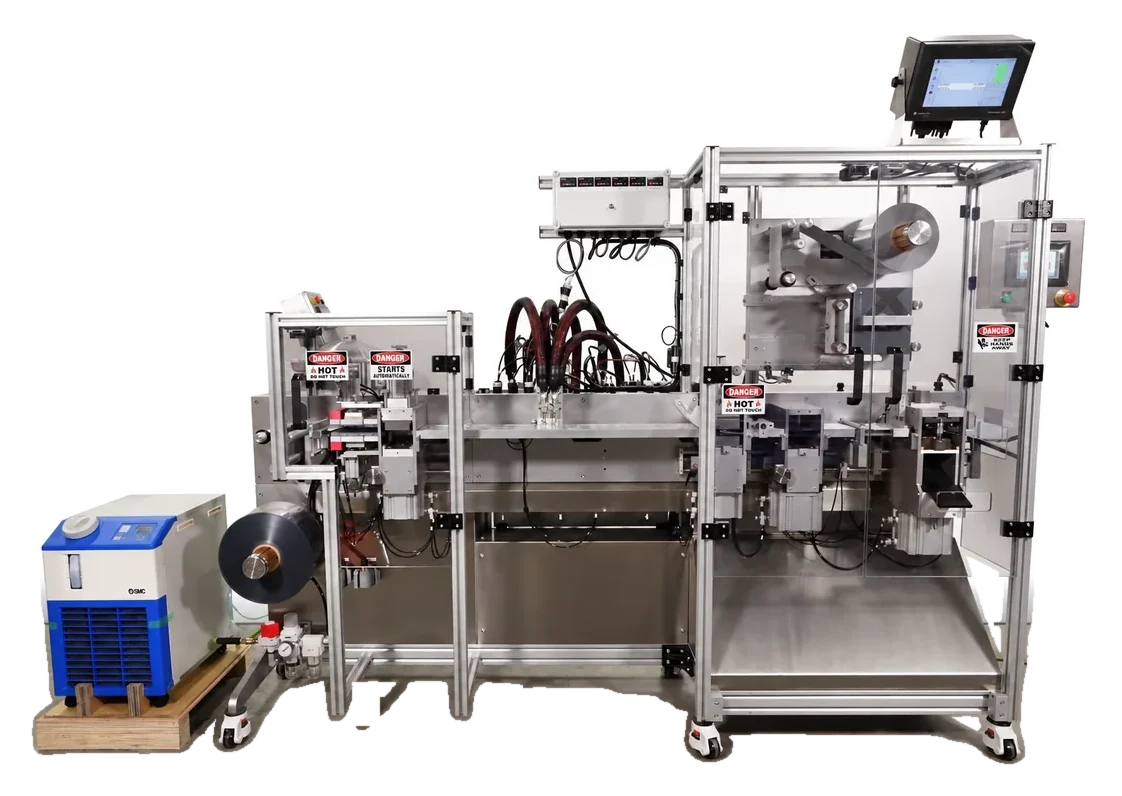

MT-150XL Blister Packaging & Sealing Machine
A Made-in-USA midsize blister packaging machine for small-to-medium batch production in pharmaceutical, nutraceutical, cosmetic, and related applications.
Best for: Small-to-medium batch production that needs a compact but robust blister line.
Machine family: Blister Packaging Machines
Supported applications
- Pharmaceutical tablets and capsules
- Nutraceutical products
- Liquids and powders
- Medical devices and gummies
Capabilities and options
- Thermoforming and cold forming
- Forming, filling, sealing, perforating, and cutting
- Manual or automatic filling options
- Printing options for variable package information
- Quick product changeovers
Specifications
| Machine dimensions | 4153 mm × 1092.2 mm × 2248 mm (L × W × H) |
|---|---|
| Machine weight | 636 kg |
| Forming area | 150 mm × 150 mm |
| Maximum forming depth | 19 mm |
| Maximum web width | 160 mm |
| Machine speed | 5–35 cycles per minute, depending on product characteristics |
| Electrical requirements | 220 VAC, 3 phase at 25 amps |
| Air consumption | 12–16 CFM based on 20 cycles per minute |
Specifications are application-dependent and must be confirmed in Mactec’s proposal.
Cycle rates are not guaranteed finished-package output. Confirm format, configuration, utilities, and acceptance conditions in the proposal.Compare blister packaging machines
Model Operations Best for Format review Cycle rate Listed utilities NANO-XL Forming, filling, sealing, perforating, and cutting Laboratory, R&D, clinical, and small-run blister packaging applications. Forming area: Approximately 80 mm × 95 mm 5–35 cycles per minute, depending on product characteristics 110 VAC at 15 amps; air: 10–12 CFM based on 20 cycles per minute MT-150XL Forming, filling, sealing, perforating, and cutting Small-to-medium batch production that needs a compact but robust blister line. Forming area: 150 mm × 150 mm 5–35 cycles per minute, depending on product characteristics 220 VAC, 3 phase at 25 amps; air: 12–16 CFM based on 20 cycles per minute MT Table Top Blister Sealer Blister sealing; not a complete forming/filling line Low-volume blister sealing, package development, laboratory work, and manual production. Confirm container or seal-die format with Mactec 1–10 cycles per minute 650 watts, 110 VAC, 50/60 Hz; air: 2–3 CFM
Questions about MT-150XL
What makes MT-150XL different from a sealing-only machine?
Its listed operations include forming, filling, sealing, perforating, and cutting. A table-top sealer addresses the sealing step rather than those complete-line operations.
How should a factory acceptance test be specified?
Agree on representative products, materials, formats, output conditions, and acceptance criteria during project scoping. A previous MT-150 project is not proof of the same result for every MT-150XL configuration.
What support can Mactec provide?
Discuss tooling changes, installation, training, and validation support with our team. Your proposal will identify the equipment, options, and services included for your application.
