Monoblock Filling Machines for Vials, Bottles, Cups & Tubes
Compact vial, bottle, cup and tube filling machines, built in New Jersey.
For pharmaceutical, nutraceutical, cosmetic and lab filling.

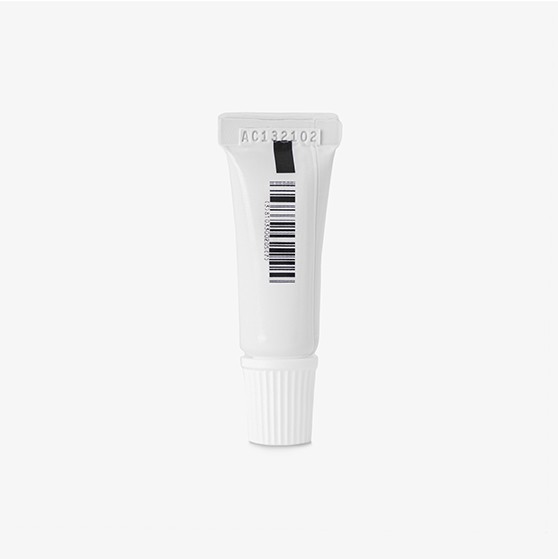

Creams, ointments, two-part epoxy and tubes are common fills, and label applicators from the major makers can be tied into the line.
Customers include Bayer.
- Typical quote
- About $150,000 to $535,000 (MTMB24 to MTMB60)
- Lead time
- About 26 to 40 weeks to factory acceptance testing, per recent proposals
Our engineers review your samples and drawings and run samples on a Mactec machine where practical.
Equipment selection
Monoblock fillers
Match the product, the container and the closure first; the filling and closing stations sit on one rotary platform. Then compare the specifications.
Compare specificationsExplore machines
Choose a model to review its operation, specifications and options.
Cup filling and sealing monoblock MTMB60
Learn more about MTMB60MTMB60 Spec sheet (PDF) — opens in a new tab
Single-Cup Pod Sealer
Learn more about Single-Cup Pod SealerMore about each machine
Choose your monoblock filling machine
Start with your container, product, and closure. Compare MTMB24 and MTMB60 for rotary filling and closing applications, or review the Single-Cup Pod Sealer for coffee and tea packaging. Mactec will help define the loading, filling, and closing operations your configuration needs.

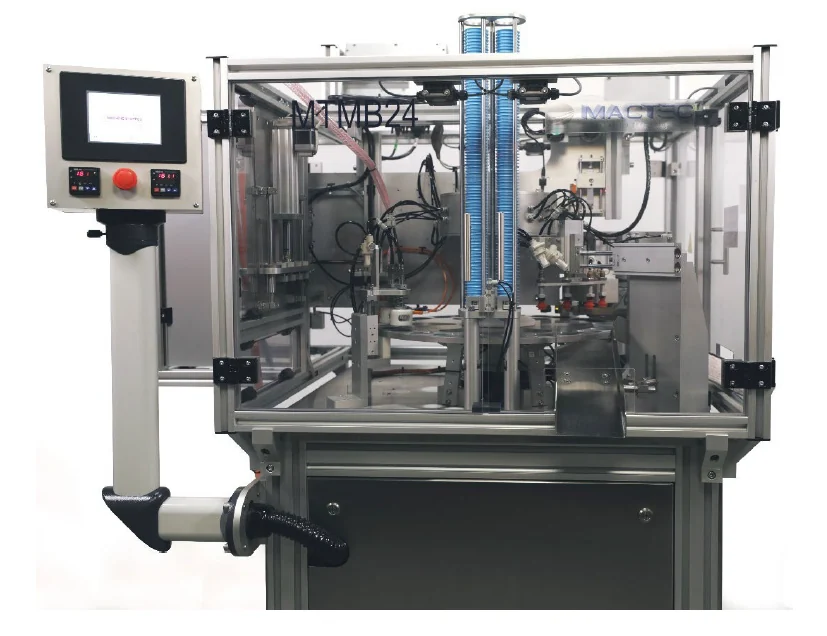

MTMB24 Monoblock Filler for Vials, Bottles, Cups & Tubes
A compact rotary vial filling machine that also runs as a bottle, cup, or tube filler. MTMB24 handles liquid or dry products and is configured for cups, tubes, vials, or small bottles, with the closing step — sealing, cap torquing, tip insertion, or tube crimping — matched to your container.
- Manual or automatic container loading
- Liquid or dry-product filling
- Application-specific sealing, cap torquing, tip insertion, or tube crimping
- Printing and optional labeling
MTMB24 specifications
- Machine Dimensions: 914 mm square frame
- Turret Diameter: 813mm
- Safety: 3/8″ thick Lexan or equivalent safety covers with full interlocks
- Indexing: high precision for +/-.003 index tolerance
- Machine Speed: 10-15 cpm (depending on product size and fill)
- Electrical Requirements: 110VAC at 10amps
- Air Consumption: 8-14 CFM based on 20 CPM
- Inline regulator with filtration filter

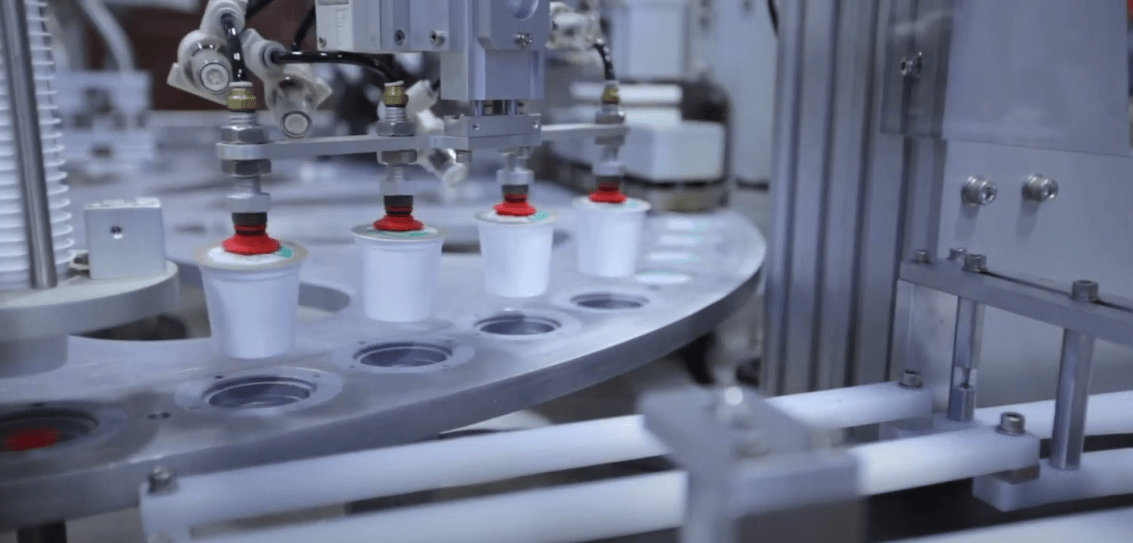

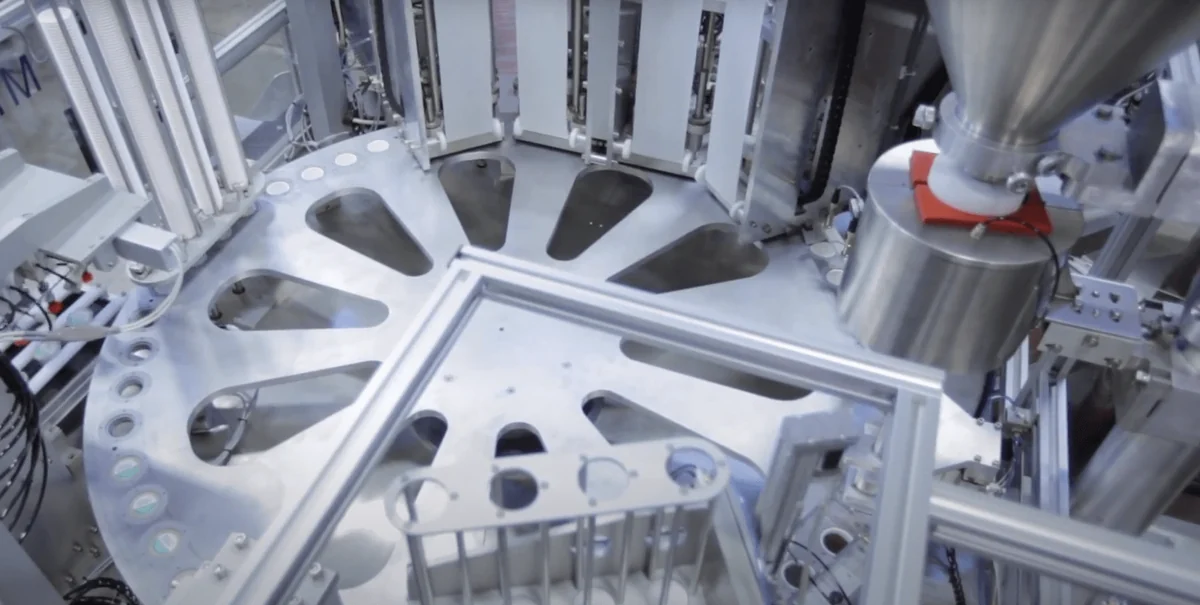

MTMB60 Multi-Station Cup Filling and Sealing Monoblock
A multi-station rotary cup filling and sealing machine, also configured for other rigid containers. MTMB60 brings container loading, filling, lid placement, sealing, and discharge into a configured production system. Review the required stations and container format with Mactec.
- A listed four-cup-per-index configuration
- Liquid or dry-product filling
- Application-specific filter handling, coding, and inspection options
- Discharge arrangements matched to the downstream process
Finished output depends on the product, fill, and selected configuration—not the index rate alone.
MTMB60 specifications
- Machine Dimensions: 72 inches square frame
- 1524 diameter rotary fill table
- Stainless steel enclosures for electrical and pneumatic controls and valves
- Set up for 4 cup per index
- Indexing: high precision for +/-.003 index tolerance
- Machine Speed: 15-25 cpm (depending on product size and fill)
- Electrical Requirements: 220VAC at 40amps
- Air Consumption: 20–30 CFM

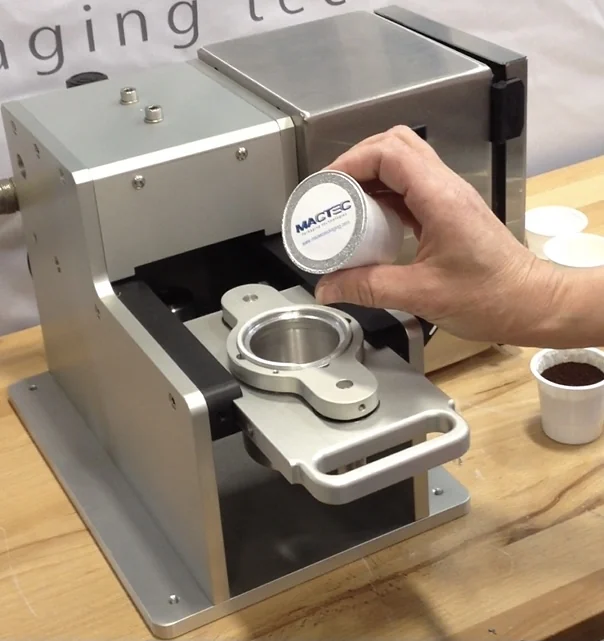

Single-Cup Pod Sealer
Single-cup packaging for coffee and tea. This system is designed for compatible cup-and-filter applications. Mactec will review your cup, filter, lidding material, and product to define the filling and sealing configuration.
What is a monoblock filling machine?
A monoblock filling machine fills and closes containers on one compact machine, instead of a separate filler and capper. Vials, bottles, cups or tubes are loaded by hand or automatically and move around a rotary table. One station fills a liquid or dry product, and the next caps, seals, inserts a tip or crimps the container. You’ll also see it called a monobloc filler or a filler capper, and printing, labeling and vision inspection can be added as extra stations. Mactec’s MTMB24 handles vials, bottles, cups and tubes, and the MTMB60 is a multi-station machine for cup filling and sealing and other rigid containers.
How much does a monoblock filling machine cost?
Most Mactec monoblock filling machine quotes fall in these ranges: the MTMB24 about $150,000 to $420,000, and the MTMB60 about $415,000 to $535,000. Your price depends on the product, feeding, tooling, printing, inspection and validation package, and our budgetary proposals separate the base machine from each option. Read what drives packaging machine cost.
Request an equipment quote
Share what you know so far. You do not need a finished specification. We match the machine and quote it.
We review your product, package, drawings and available samples. A budgetary proposal lists the base machine and options separately. Once formats, operations and acceptance criteria are agreed, we prepare a firm quotation. See how a Mactec project works.
Or call 732.416.8525Talk to an engineer
Request an equipment quote
Not ready for a quote? Browse our machines for available spec sheets, or ask whether we can run a sample with your product.
Fill in the form, or call 732.416.8525.
Small-batch vial, tube and cup filling
For 503B outsourcing facilities, labs and manufacturers filling small batches rather than running a production line: the MTMB24 fills and closes vials, small bottles, tubes and cups on a 914 mm square frame at 110 VAC at 10 amps, loads by hand or automatically, and closes with cup sealing, cap torquing, tip insertion or tube crimping. The MTMB60 runs four cups per index on a 72-inch square frame at 220 VAC at 40 amps, with lid placement and sealing. Both offer high-precision indexing, ±0.003 inch.
Each comes with final layout, electrical and pneumatic drawings, an instruction manual with spare-parts list and factory acceptance testing in Sayreville. Send the container and closure with your inquiry; the vial, bottle, cup and tube filling page shows the two machines side by side, and unit dose packaging machines for pharmacies covers pharmacy work.
Built and supported in New Jersey
- Founded in 2004. Every Mactec machine is designed, engineered and built at our Sayreville, New Jersey headquarters.
- Our engineers review your samples and drawings and run samples on a Mactec machine where practical.
- Factory acceptance testing you can witness, on-site installation and validation, IQ/OQ protocol support and operator training.
- Spare parts are stocked at our New Jersey headquarters.
- Built and shipped from New Jersey: US customers pay no import tariff and need no customs broker.
- Standard documentation with every machine: final layout, electrical and pneumatic drawings and an instruction manual with spare-parts list.
See the machines in operation
Monoblock equipment in practice
Read how 503B pharmacies use Mactec rotary filling and sealing machines for unit-dose cups, vials, tubes and small bottles.
Customers include Bayer.
How the machines compare
Made-in-USA monoblock fillers: vial filling and capping, bottle filling and capping, cup filling and sealing, or tube crimping on one compact rotary platform.
Compare the published specifications
Monoblock filling and capping machines made in the USA
Mactec builds its monoblock filling machines at its Sayreville, New Jersey headquarters: the MTMB24 monoblock filler, a compact rotary machine for small rigid containers, including vials, bottles, cups or tubes, with liquid or dry products and an application-specific closing station; the MTMB60 multi-station rotary filling and sealing monoblock for rigid-container and cup applications; and the Single-Cup Pod Sealer for compatible coffee and tea cup formats.
In each of these monoblock filling systems, one compact rotary platform carries the filling and closing stations — vial filling and capping, bottle filling and capping, cup filling and sealing or tube crimping — with factory acceptance testing you can witness, IQ/OQ protocol support and spare parts stocked at the New Jersey headquarters.
Compare monoblock filling and capping machines
Match the product, container and closure before comparing output. Vial filling and capping, bottle capping, cup sealing and tube crimping are different station sets on the same rotary platform; confirm which your configuration includes. A monoblock capping machine, or filler capper, is the same rotary platform set up for capping: on the MTMB24, the closing station can torque caps onto bottles and vials.
Filling and sealing tubes? See tube filling and sealing machines.
| Machine | Process | What to compare |
|---|---|---|
| MTMB24 | Rotary filling with application-specific closing | Small rigid containers, including vials, bottles, cups or tubes; confirm tooling and closing method. |
| MTMB60 | Multi-station rotary filling and sealing | Rigid-container and cup applications; compare station requirements and container handling. |
| Single-Cup Pod Sealer | Single-cup filling and sealing | Compatible coffee and tea cup formats; review cup, filter and lidding materials. |
Open a model page for public specifications and details. Output depends on the product, package and selected configuration.
How a monoblock filling machine works
A monoblock filling system, sometimes written monobloc filler, combines multiple packaging processes in one machine: it brings the filling and closing stations together on one compact rotary platform, for a wide range of small rigid containers.
Containers are loaded by hand or automatically, indexed around the rotary table, filled with a liquid or dry product, then closed at the next station: a sealed lid for cups, a torqued cap for bottles and vials, an inserted tip, or a crimp for tubes. So, depending on its stations, the same rotary filling machine can be a vial or bottle filling and capping machine, a cup filling and sealing machine or a tube filling and crimping machine.
Printing, labeling, presence sensors, vision inspection and a discharge conveyor can be added as further stations.
The MTMB24 indexes containers on an 813 mm turret inside a fully interlocked safety enclosure at a listed 10–15 cycles per minute, depending on product size and fill; the MTMB60 uses a 1524 mm rotary fill table set up for four cups per index at a listed 15–25 cycles per minute. Finished output depends on the product, the fill and the stations in your configuration, not on the index rate alone. See choosing monoblock filling and capping equipment.
| Specification | MTMB24 | MTMB60 | Single-Cup Pod Sealer |
|---|---|---|---|
| Closing operations | Cup sealing, cap torquing, tip insertion, tube crimping | Lid placement and sealing | Single-cup filling and sealing |
| Container loading | Automatic or manual | Manual magazine loading option | Confirm with Mactec |
| Containers per index | Confirm with Mactec | Four cups per index | Confirm with Mactec |
| Listed cycle rate | 10–15 cycles per minute, depending on product size and fill | 15–25 cycles per minute, depending on product size and fill | Application-specific; confirm with Mactec |
| Footprint | 914 mm square frame | 72-inch square frame | Confirm with Mactec |
| Listed utilities | 110 VAC at 10 amps; air 8–14 CFM based on 20 cycles per minute | 220 VAC at 40 amps; air 20–30 CFM | Confirm with Mactec |
What determines the cost of a monoblock filling machine?
The platform is the starting point; the stations and tooling your containers need set most of the price. The main variables are how containers are loaded (by hand or automatically), the filling method for your product (liquid or dry), the closing operation (sealing, cap torquing, tip insertion or tube crimping), tooling and change parts for each container format you plan to run, printing and labeling, inspection options, and the validation documentation your quality team expects. Our budgetary proposals separate the base machine from each option, so you can see what every choice adds. Read what drives packaging machine cost.
How these machines work
Mactec machine photographs
Explore Mactec rotary equipment and application-specific configurations. The equipment shown varies by project; confirm the stations and options included in your proposal.
Compare manual loading and packaging automation · Prepare your filling and closing requirements
A closer look at the equipment
Formats and options across the range
- Automatic or manual product loading
- Liquid or dry filling
- Cup sealing, cap torquing, tip insertion, and tube crimping options
- Printing and labeling options
- Simple product change parts
- Four cups per index configuration
- Manual magazine loading option
- Presence sensors and vision-system options
- Lid placement, sealing, and optional discharge conveyor
- Single-cup filling and sealing
- Filter-placement integration
- Application-specific tooling and configuration
Every option above is listed on the model pages. Which ones your configuration includes is confirmed in Mactec's proposal.
Need a different package?
Planning your project
Let’s discuss your application
You do not need a finished equipment specification to start. These details will help us recommend a suitable machine.
Your container and product
Share your cup, tube, vial, or bottle, along with the product and the amount you need to fill.
How the container closes
Tell us whether you need a sealed lid, screw cap, inserted tip, or crimped closure. Each method requires the appropriate equipment and tooling.
Your production goals
Describe your target output and any container changes. We will review loading, filling, closing, and discharge as part of your machine configuration.
Related guides
- Cup filling and sealing: Preformed or formed cups, lidding, printing and changeovers between sizes.
- Working out the machine speed you need: Turn a production target into cycles per minute and compare finished output.
- What drives packaging machine cost: The choices that move the price, buying in phases, and what to send for a budgetary quote.
- Which filling method for small-batch liquids and powders? Piston, peristaltic, gravity, pump, auger and weigh-filling in plain words, and what decides the method.
Ready for a quote?
Send us your container, closure and product. We match the machine and quote it. You do not need a finished specification.
