Blister Machines

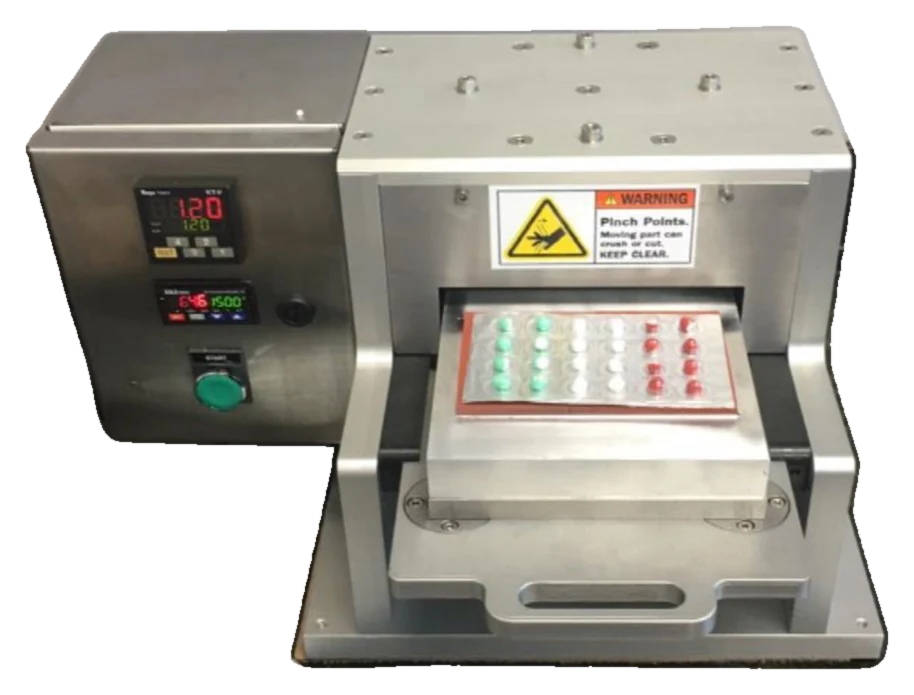

MT Table Top Blister Sealing Machine
A compact table top blister sealer, also called a blister card sealing machine, with digital heat and timer controls plus removable seal-die options for low-volume packaging work, including 503B and hospital unit-dose repackaging. It seals blisters that are already formed and loaded; it handles the sealing step only. Need to form and fill the blister as well as seal it? See the NANO-XL small blister pack machine or all blister packaging machines.
Best for: Low-volume blister sealing, package development, laboratory work, and manual production.
Machine family: Blister Packaging Machines
Supported applications
- Laboratory and package-development work
- Small production runs
- Multiple blister formats with removable seal dies
Capabilities and options
- Digital heat controller
- Digital timer
- Tool-less change parts
- Multiple removable seal-die options
Specifications
| Machine dimensions | 304 mm × 355 mm × 247 mm (L × W × H) |
|---|---|
| Machine weight | Approximately 34 kg |
| Machine speed | 1–10 cycles per minute |
| Electrical requirements | 650 watts, 110 VAC, 50/60 Hz |
| Air consumption | 2–3 CFM |
| Main air pressure | 30–90 PSI |
| Timer | Koyo digital timer |
Specifications are application-dependent and must be confirmed in Mactec’s proposal.
Cycle rates are not guaranteed finished-package output. Confirm format, configuration, utilities, and acceptance conditions in the proposal.Compare blister packaging machines
Model Operations Best for Format review Cycle rate Listed utilities NANO-XL Forming, filling, sealing, perforating, and cutting Laboratory, R&D, clinical, and small-run blister packaging applications. Forming area: Approximately 80 mm × 95 mm 5–35 cycles per minute, depending on product characteristics 110 VAC at 15 amps; air: 10–12 CFM based on 20 cycles per minute MT-150XL Forming, filling, sealing, perforating, and cutting Small-to-medium batch production that needs a compact but robust blister line. Forming area: 150 mm × 150 mm 5–35 cycles per minute, depending on product characteristics 220 VAC, 3 phase at 25 amps; air: 12–16 CFM based on 20 cycles per minute MT Table Top Blister Sealer Blister sealing; not a complete forming/filling line Low-volume blister sealing, package development, laboratory work, and manual production. Confirm container or seal-die format with Mactec 1–10 cycles per minute 650 watts, 110 VAC, 50/60 Hz; air: 2–3 CFM
Questions about MT Table Top Blister Sealer
Does this table-top machine form and fill blisters?
The listed machine is a blister sealer. Do not select it as a complete forming/filling line; compare NANO-XL and MT-150XL if those operations are required.
What information is needed to evaluate sealing?
Provide the blister, lidding material, seal area, product, and proposed loading method. Ask which seal dies and change parts are included for each format.
What support can Mactec provide?
Discuss tooling changes, installation, training, and validation support with our team. Your proposal will identify the equipment, options, and services included for your application.
