Pouch Machines

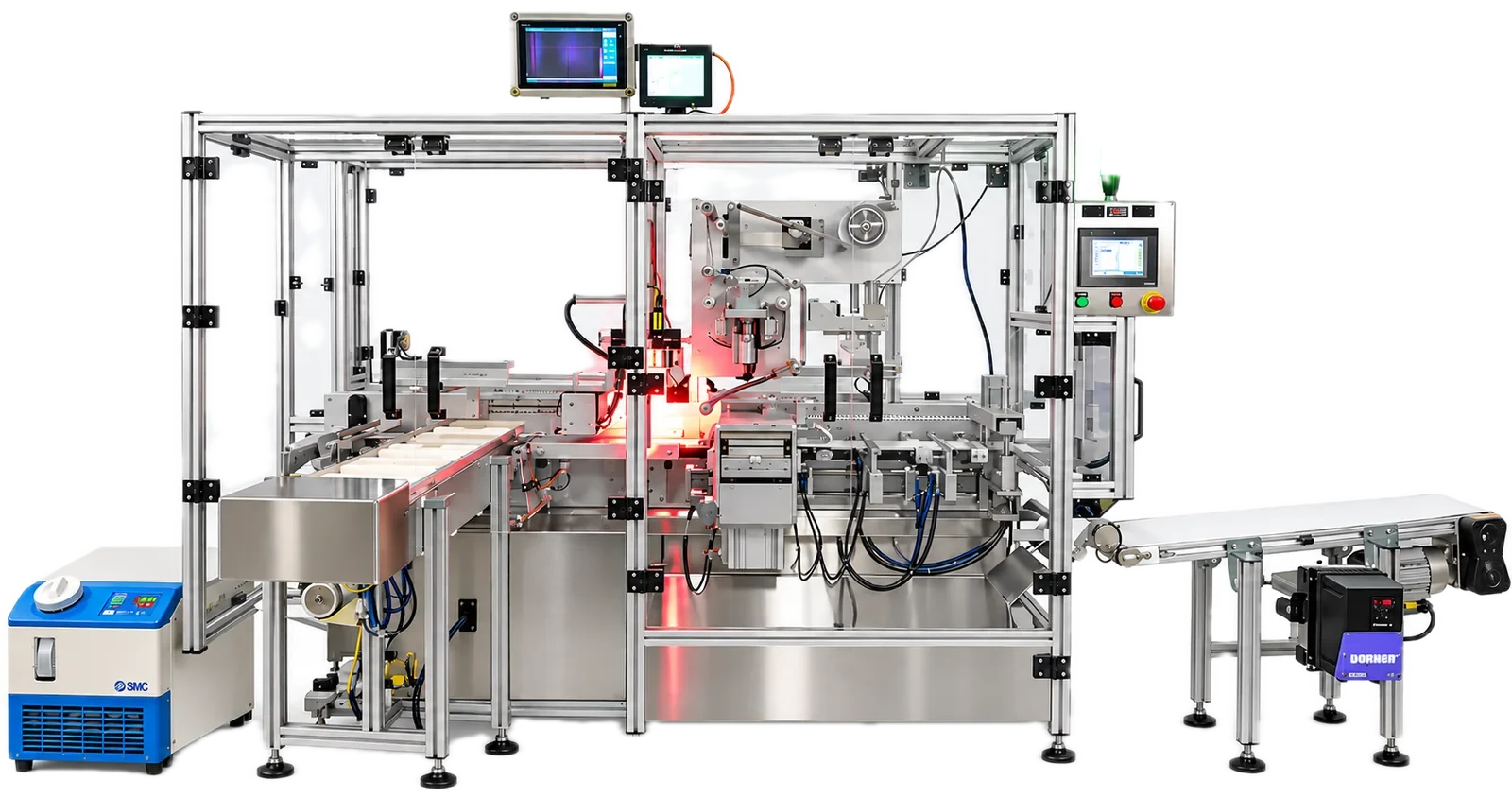

MTHP150 Horizontal Form Fill Seal Pouch Machine
A horizontal form-fill-seal (HFFS) pouch machine for transdermal patches, medical devices, edibles, powders, and other products requiring placement or pick-and-place options.
Best for: Flat or placed products that benefit from horizontal feeding and optional pick-and-place automation.
Machine family: Pouch Packaging Machines
Supported applications
- Transdermal patches
- Medical devices
- Powders and specialty products
- Edibles and other placed products
Capabilities and options
- Forming, feeding, sealing, perforating, and cutting
- Pick-and-place customization
- Multi-lane configurations depending on pouch size
- Vision-system options
- Four-sided seals and variable-data printing options
Specifications
| Machine dimensions | 2438 mm × 711 mm × 1981 mm (L × W × H) |
|---|---|
| Machine weight | Approximately 475 kg |
| Forming area | Approximately 120 mm × 160 mm |
| Maximum web width | Approximately 160 mm |
| Machine speed | 10–30 cycles per minute, depending on product characteristics |
| Electrical requirements | 110 VAC at 15 amps |
| Air consumption | 12–16 CFM based on 20 cycles per minute |
Specifications are application-dependent and must be confirmed in Mactec’s proposal.
Cycle rates are not guaranteed finished-package output. Confirm format, configuration, utilities, and acceptance conditions in the proposal.Compare pouch packaging machines
Model Operations Best for Format review Cycle rate Listed utilities MTVP100 Vertical form-fill-seal Vertical sachet and unit-dose applications; confirm the pouch format with Mactec Forming area: Approximately 100 mm × 160 mm. Confirm maximum usable web width with engineering 10–35 cycles per minute, depending on product and automation 110 VAC at 15 amps; air: 12–16 CFM based on 20 cycles per minute MTVP200 Vertical form-fill-seal Larger pouch formats and multi-lane production requiring up to approximately 200 mm web width. Forming area: Approximately 140 mm × 200 mm 10–35 cycles per minute, depending on product and automation 110 VAC at 15 amps; air: 12–16 CFM based on 20 cycles per minute MTHP150 Horizontal forming, feeding, sealing, perforating, and cutting Flat or placed products that benefit from horizontal feeding and optional pick-and-place automation. Forming area: Approximately 120 mm × 160 mm 10–30 cycles per minute, depending on product characteristics 110 VAC at 15 amps; air: 12–16 CFM based on 20 cycles per minute
See the machine in operation
Questions about MTHP150
When should horizontal product handling be considered?
The listed applications include patches, devices, and other placed products. Discuss product orientation and loading when a product needs placement rather than simply falling into a pouch.
Are pick-and-place and vision included on every machine?
They are listed as customization or options. Confirm the selected loading and inspection equipment in the project scope.
What support can Mactec provide?
Discuss tooling changes, installation, training, and validation support with our team. Your proposal will identify the equipment, options, and services included for your application.
Related guides
- Transdermal patch packaging: Placing patches into pouches, cutting, loading and automation.
- Medical device pouch packaging: Tyvek and foil questions, manual or automatic loading, printing and inspection.
- Integrating with robots and integrators: Interfaces, responsibilities and testing for an integrated cell.
