Pouch Machines

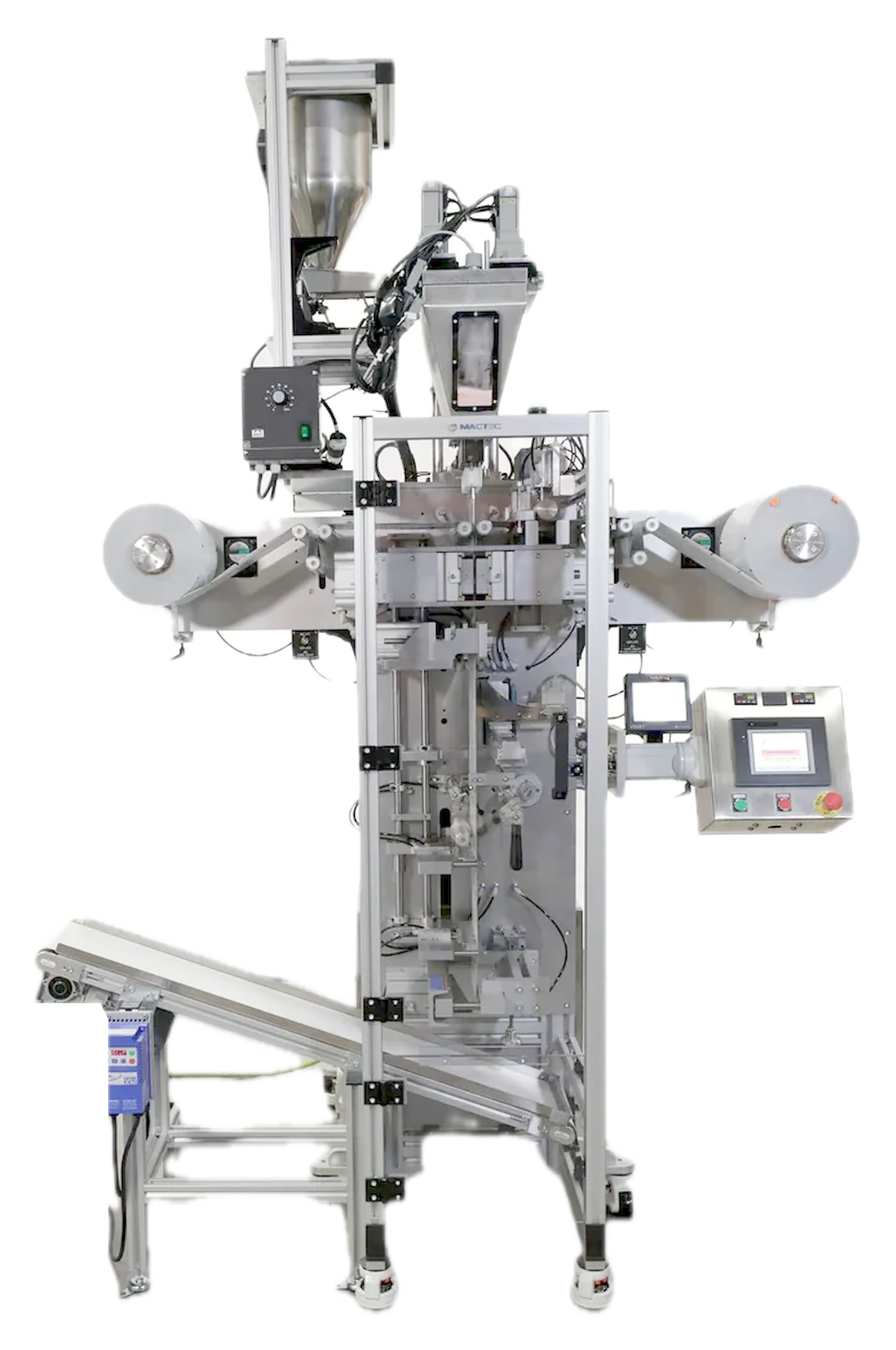

MTVP100 Vertical Form Fill Seal (VFFS) Sachet Machine
A compact vertical form fill seal (VFFS) sachet machine, made in the USA. It forms pouches from rollstock, fills a measured dose of liquid, powder, tablets or capsules, then seals, perforates and cuts the finished sachets, sample pouches and unit-dose packs.
Best for: Vertical sachet and unit-dose applications; confirm the pouch format with Mactec
Machine family: Pouch Packaging Machines
Supported applications
- Liquids and powders
- Tablets and capsules
- Sachets and sample pouches
- Multi-lane unit-dose formats
Capabilities and options
- Forming, filling, sealing, perforating, and cutting
- Automatic product filling
- Multi-lane configurations
- Registration for preprinted material
- Four-sided seals and variable-data printing options
Specifications
| Machine dimensions | 1219 mm × 1524 mm × 1828 mm (L × W × H) |
|---|---|
| Machine weight | Approximately 385 kg |
| Forming area | Approximately 100 mm × 160 mm |
| Machine speed | 10–35 cycles per minute, depending on product and automation |
| Electrical requirements | 110 VAC at 15 amps |
| Air consumption | 12–16 CFM based on 20 cycles per minute |
Specifications are application-dependent and must be confirmed in Mactec’s proposal.
Cycle rates are not guaranteed finished-package output. Confirm format, configuration, utilities, and acceptance conditions in the proposal.Compare pouch packaging machines
Model Operations Best for Format review Cycle rate Listed utilities MTVP100 Vertical form-fill-seal Vertical sachet and unit-dose applications; confirm the pouch format with Mactec Forming area: Approximately 100 mm × 160 mm. Confirm maximum usable web width with engineering 10–35 cycles per minute, depending on product and automation 110 VAC at 15 amps; air: 12–16 CFM based on 20 cycles per minute MTVP200 Vertical form-fill-seal Larger pouch formats and multi-lane production requiring up to approximately 200 mm web width. Forming area: Approximately 140 mm × 200 mm 10–35 cycles per minute, depending on product and automation 110 VAC at 15 amps; air: 12–16 CFM based on 20 cycles per minute MTHP150 Horizontal forming, feeding, sealing, perforating, and cutting Flat or placed products that benefit from horizontal feeding and optional pick-and-place automation. Forming area: Approximately 120 mm × 160 mm 10–30 cycles per minute, depending on product characteristics 110 VAC at 15 amps; air: 12–16 CFM based on 20 cycles per minute
See the machine in operation
Questions about MTVP100
Which products should I discuss for this vertical platform?
The catalog lists liquids, powders, tablets, and capsules. Bring samples and fill requirements so Mactec can assess the dosing method and package format.
Can the model number be used as a finished-pouch size?
No. Confirm the usable package drawing, web width, seals, registration, and lane layout with engineering. Do not derive a guaranteed finished-pouch dimension from the model name.
What support can Mactec provide?
Discuss tooling changes, installation, training, and validation support with our team. Your proposal will identify the equipment, options, and services included for your application.
Related guides
- Filling sauces, creams and liquids into pouches: Viscosity, particulates, fill temperature and pouch format questions.
- Medical device pouch packaging: Tyvek and foil questions, manual or automatic loading, printing and inspection.
- Integrating with robots and integrators: Interfaces, responsibilities and testing for an integrated cell.
- What Is a VFFS Machine? Vertical Form Fill Seal Explained: What a VFFS machine is, what it packs, when a compact one is enough, and what to decide before you buy.
- Powder Sachet Filling Machines: Dosing, Dust and Seal: How a powder flows, how dusty it is, the dose and the seal: the questions that decide a powder sachet project.
- Vertical Form Fill Seal Machines: The MTVP100 and MTVP200 side by side: what they pack, their published specifications, options and open spec sheets.
Talk to an engineer
